Potentiometer
single-turn wirewound potentiometer
- Package Diameter: 22mm
- Number of Turns:1
- Angle of rotation:300°
- Rotational Life (no load) Cycles: 15,000
- Product description: WX118 single-turn wirewound potentiometer with 1W rating power and 15,000 rotational life (no load) cycles

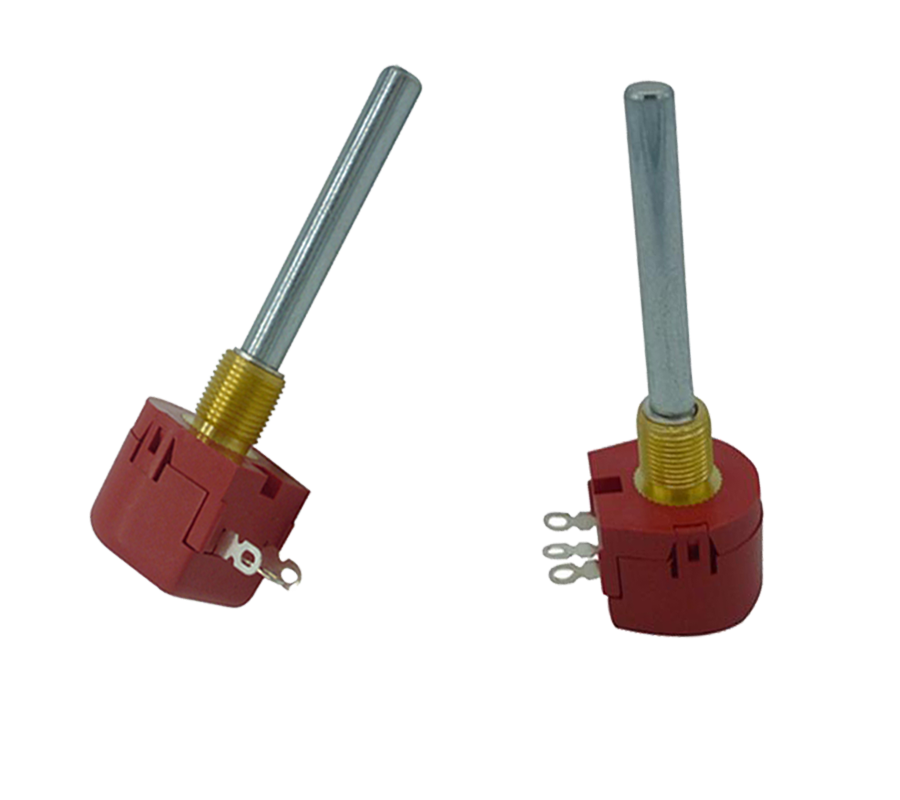

WX118 single-turn wirewound potentiometer
Technical specification:
Model
WX118
Package Diameter
22mm
Shape
“U”
Number of Turns
1
Shaft
25mm/50mm
IP Level
IP40
Taper-Linear
X
Linearity
±5%
Angle of rotation
300°
Rotational life (no load) cycles
15000
Terminal
Solder
Lug
Resistance range
10Ω-22Kohm
Tolerance resistance
±5%
Rated Power
1W
Shaft Diameter
6mm
Dimensions:
